Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine

Ask Lasest Price
Brand Name :	Longxingsheng
Model Number :	LS-1200B
Certification :	CE, ISO9000
Supply Ability :	10-20 set per month
Delivery Time :	20-60 days

Add to Cart

Product Details
Company Profile

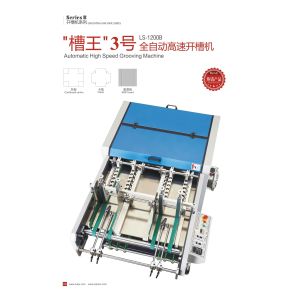

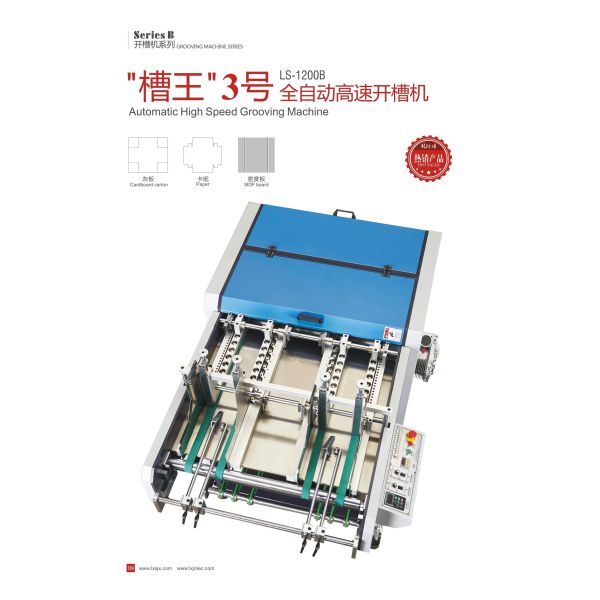

Automatic Roll Cardboard Groove Cutting Machine , Dustless Paper Grooving Machine

LS-1200B

About LS-1200B.

LS-1200B Automatic cardboard grooving machine is using for cardboard V shape slots grooving. It can groove at 80-140 degree V slots. It can groove 8 slot at a time (Depend on cardboard size). Working speed is 40m/min, around 100-200 pcs/min.
LS-1200B has applied belt feeding syatem and double alligning system to ensure the constant and accurate cardboard feeding to grooving area. In the grooving area, it applies big roller which diameter is 60cm and pressing belt to convey card board pass the grooving blade. After finished, the conveyor will convey grooved cardboard to the front side, corner waste and slots waste will be feeding to the back side.
This roller grooving machine has start from 2012, Now it is popular in the packing industries. It is an ideal equipment for cardboard, MDF board and thin paper grooving.

Price vary with raw material cost, please contact our sales for lastest prices.


Specification of LS-1200B Automatic high speed cardboard grooving machine
Machine model 型号	LS-1200B
Quantity of groove at a time 最大开槽数	8 slots
Working speed 工作速度	40m/min(100-200pcs/min)
Cardboard size 纸板规格	140120-1000600mm
Cardboard thickness 纸板厚度	0.8-4mm
Motor power 电机功率	2Kw/380v
Machine dimension 外形尺寸	L2050W1320H1350mm
Machine weight 机器重量	1250kg

1. Control table

Including power button, emergency stop button, counter and speed adjuster.

2.Double cardboard feeding device

Finished two direction grooving in one machine at same time

3. Double alligning system

Ensured feeding the cardboard staightly to the feeding area.

4. Cardboard pressing belt

Pressing cardboard on the roller

5. Double line blade seat.

Totally 8 blade seat which is able to installed blade holder.

6. Grooving angle adjusment.

It can adjust the grooving slots from 80-140 degree.

7. Upgrade blade holder

Upgrade from ond type, easier for setting. Installed left&right blade here.

8. Grooving blade.

V-shape grooving blade, including two types. 90 degree and 120 degree blades.

9. Waste cleaning conveyor.

Remove corner waste and slots waste out from the finished products.

Standard configurations

90 degree blade holder

Equipped 4 sets 90 degree blade holder. It can be clarify by the square shape.

120 degree blade holder

Equipped 4 sets 120 degree blade holder, including blade. It can be clarify by the rectangular shape.

Grinding machine

One set grinding machine, grinding the blade when it gets blunt.

Collecting table

Collecting finished grooving products.

Working range of LS-1200B

Cardboard

Thickness at 0.8-4mm. Cardboard is a reproduced material by waste paper. It is cheap and has good quality.

MDF board

Thickness at 1-3mm.MDF board is widely applied in the wine box, jewelry box etc. It is reproduced by wood material.

Thin paper

Thickness at 500-800 gsmIt is thinner than cardboard. Mostly has been laminated processing. This is one time finished product, higher value than cardboard and MDF. Only applied in high value packing.

Working process

1. Cardboard split to require size

Cutting the cardboard to require size by die cutting machine or cardboard spliting machine

2. Half cut on the B side

Half cutting by die cutting machine. Ensure the four corner will be removed easily after grooving.

3. First cardboard feeding

Feeding the cardboard, A side at upside.

4. Second cardboard feeding

Change direction, feeding the cardboard, A side at upside.

5. Finished products

After finished grooving, the corner waste and v-slots waste will be removed when it passing the waste cleaning conveyor.

Grooved products and die cutting products

Grooved cardboard& Die cutted cardboard

Die cutted box & Grooved box

Machine installation

Expo with customers

Certification

Company Profile

Dongguan Longxingjian Intelligent Equipment Co.,Ltd


We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd. We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.

We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.

Packaging&Delivery

Our Service

Pre-sale service.

* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Order confirmation.


After-sale service.

* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.

FAQ

What is LXS company machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).

Does your machine with CE certificate?----Yes.We have CE ,ISO9001 .

What is the production time while placing order?---- Within 7-30 workdays.

Do you have stock product to sell?----Normally we do,it depends on which models you inquired .

What is your lead time?----Within 5-30 workdays ,we will arrange your order upon receiving your 30% deposit on order and ship out the machine before receiving your 70% remaining payment.

Can LXS company handle shipping for customers?----Yes.(Please provide us your requested sea port and we can check the shipping cost from logistic company and arrange shipping for you.

Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.

How about after-sales service process?----When your machine has problem, just contact your sales and we will solve your problem ASAP.

Can your engineer come to us for installing the machine & handle problems?---Yes,we can.And it is free-cost for the installing & training for 7 work days,you just need to pay for the air tickets & accommodation for our engineer.

Are you a manufacturer?----Yes, we are a manufacturer with over 12 years professional experience .Welcome the exclusive agents in Europe/Asia/Africa/America to join us.

What is the minimum quantity for order?----1 set, we done business step by step with high quality products and excellent services.

Do you inspect the finished products?----Yes, each step of production products will be inspection by our QC department and the running inspection video will be sent to to you for your verification before shipping.

What’s the payment term?---FOB/CIF terms,payment by T/T 30% in advance,70% balance before shipping.(It is negotiable)

 If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.
